Deflection Barrier
Roller Barrier
Impact-absorbing barriers that deflect vehicles away from walls, columns and equipment.
Overview

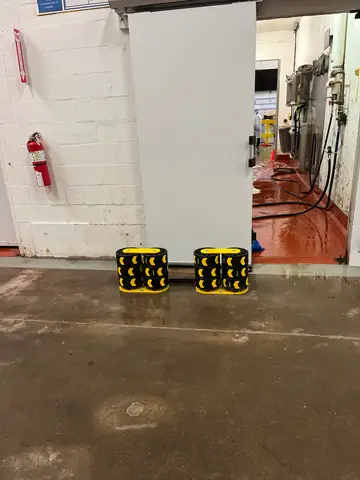

The Roller Barrier redirects forklifts and material-handling vehicles away from walls, columns and sensitive equipment. Its compact profile preserves usable floor space in narrow aisles and tight corners where standard guardrails would obstruct movement, and the vulcanized-rubber face absorbs and redirects collision energy in a single motion. The family spans two profiles, single-level and double-level, each in three lengths, so runs can be built continuously along walls and around corners.
- Hybrid rubber-and-steel construction absorbs impact and redirects motion
- Compact profile preserves floor space along walls and columns
- Single-level and double-level profiles for different vehicle heights
- Three lengths per profile build continuous runs and corners
Specifications
| Protection height | 5.5" |
| Levels | 1 level |
| Length | 17.7" |
| Weight | 40.1 lb |
| Impact rating | 5.45-5.75 kJ |
| Forklift equivalent | 6,000 lb @ 4.5 mph |
| Material | Steel + NR rubber |
| Finish | Yellow electrostatic paint |
| Temperature range | 0°F to 160°F |
| Fastening | 1/2" × 4¼" wedge anchor (zinc-plated), floor mounted |
| Galvanized option | Available |
